01 // TEKLA & FABRICATION DRAWINGS
Structural Steel Detailing
Detailed models and fabrication-ready documentation for commercial, industrial and miscellaneous steel.
- 3D modeling
- Shop & erection drawings
- Anchor bolt plans
- Material / bolt reports
- NC / CNC data
02 // CONCRETE & MASONRY
Rebar Detailing & Estimation
Reinforcing steel detailing and quantity estimation for concrete and masonry construction.
- Placing drawings
- Bar lists & takeoffs
- Foundations, walls & slabs
- Columns & beams
- Revision / RFI support
03 // LOD 500 CLASH DETECTION
BIM & 3D Coordination
Coordinated BIM models designed to help identify conflicts before fabrication and construction.
- Structural BIM
- Clash detection
- Model coordination
- Quantity extraction
- LOD-based deliverables
04 // PRE-ENGINEERED & TILT-UP

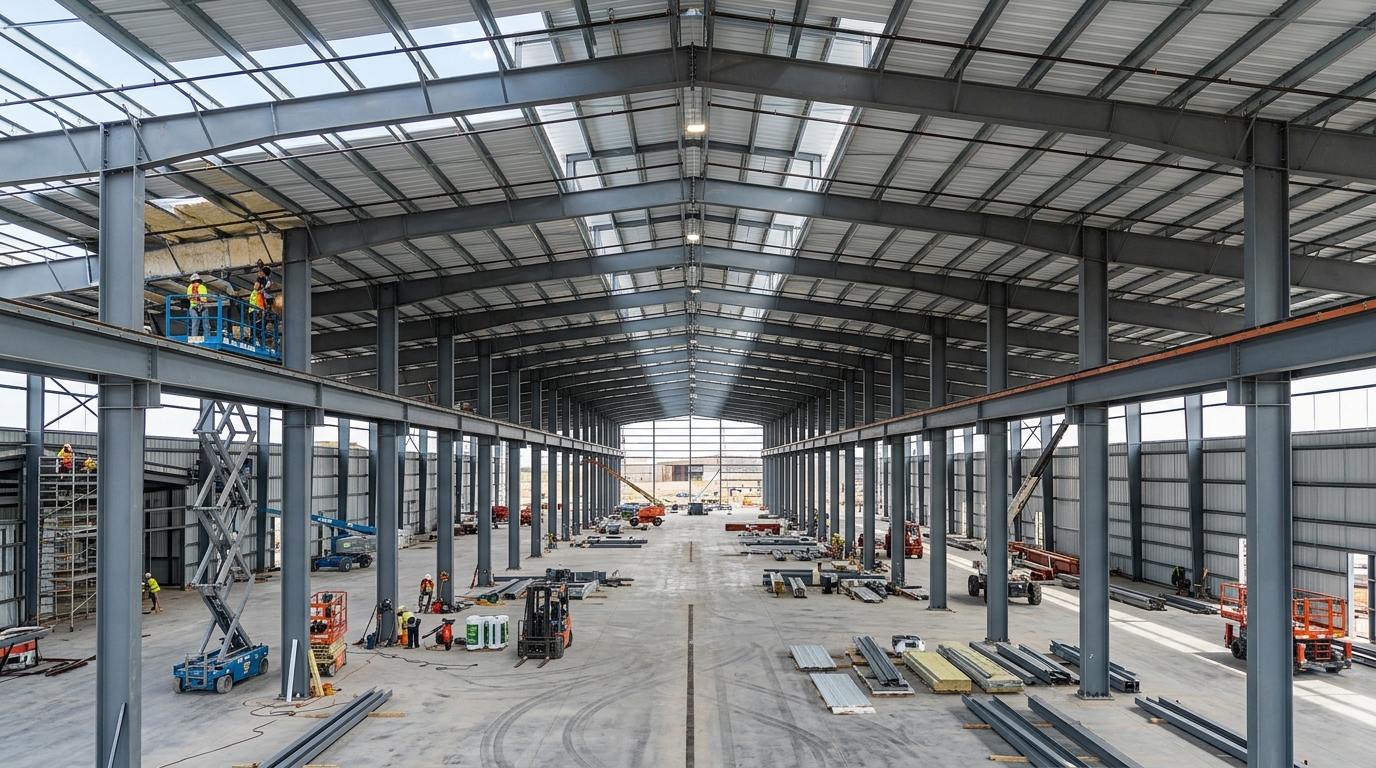

PEMB & Tilt-Up Support
Specialized production support for pre-engineered metal buildings and tilt-up construction.
- Framing & bracing
- Connections
- Anchor bolt layouts
- Tilt-up embeds
- Rebar / embed coordination
ADDITIONAL CAPACITY
Your backlog doesn't have to become your bottleneck.
Work with STRAVEX as an extended production team for overflow workloads, recurring projects or dedicated detailing capacity.
Steel FabricatorsRebar FabricatorsGeneral ContractorsEngineering FirmsPEMB Companies
